Light Armoured Multipurpose Vehicle

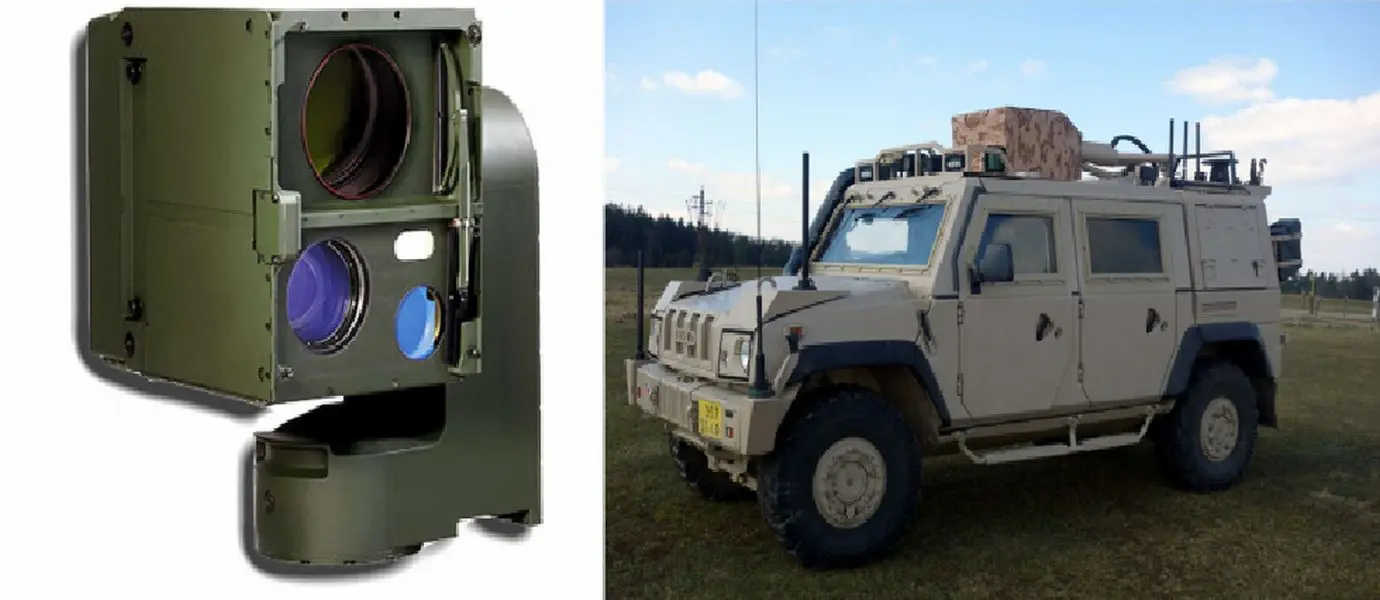

The „LOV-ISR“ Light Armoured Multipurpose Vehicle featuring the reconnaissance mission kit is based on the IVECO M65E 19 WM 4×4 vehicle concept with light-armoured cabin. The LOV-ISR system is equipped with a special mission kit integrating the BAA II system that is connected to the C4ISR architecture.
Purpose
The LOV-ISR Light Armoured Multipurpose Vehicle featuring the reconnaissance mission kit has been developed as part of the combined arms system serving as a reconnaissance mean to support the armed forces deployed during foreign missions. The vehicle is expected to be deployed mainly at exposed battlefield areas with the aim to acquire enemy information especially under the asymmetric warfare conditions.
Main TTD
| BAA II Surveillance and Reconnaissance System | Mast lifting height | 1320 mm |
| Pan&Tilt in azimuth | n x 360° | |
| Pan&Tilt in elevation | -30°/+ 70° | |
| CCD TV camera – Wide FOV | 17,5° x 13,1° | |
| CCD TV camera – Mild FOV | 8° x 6° | |
| CCD TV camera – Narrow FOV | 2° x 1,5° | |
| CCD TV camera – Super Narrow FOV | 1,25° x 0,95° | |
| Cooled IR camera – spectral area | 3 μm – 5 μm | |
| IR camera – Wide FOV | 16° x 12,8° | |
| IR camera – Mild FOV | 8° x 6,4° | |
| IR camera – Narrow FOV | 2° x 1,6° | |
| IR camera – Super Narrow FOV | 1° x 0,8° | |
| Image fusion FOV | 14,6° x 11,7° | |
| Laser Rangefinder – range of measurement | 50 to 20 000 m | |
| Laser Rangefinder – wavelength | 1572 nm | |
| Range of Laser Rangefinder | 5,3 km | |
| Range of Laser Illuminator | 2 km | |
| Power System | Add-on Li-pol accumulator batteries | 240 Ah |
| External Communication System | Harris RF-117 G radio station | 1 unit |
| MPU-5 radio station | 1 unit | |
| SATCOM | 1 unit | |
| Internal Communication System | VICM 200 system | 4 unit |
| Navigation System | DAGR AN/PSN-13A GPS receiver | 1 unit |
| TALIN 2000 INU | 1 unit | |
| Jammers | STARLIGHT 3-M1 | 1 unit |
| Detection Systems | GSD Fire Detection System | 1 unit |
| SDIO Laser Warning System | 1 unit | |
| UAV Video Receiver | Rover 6i | 1 unit |
