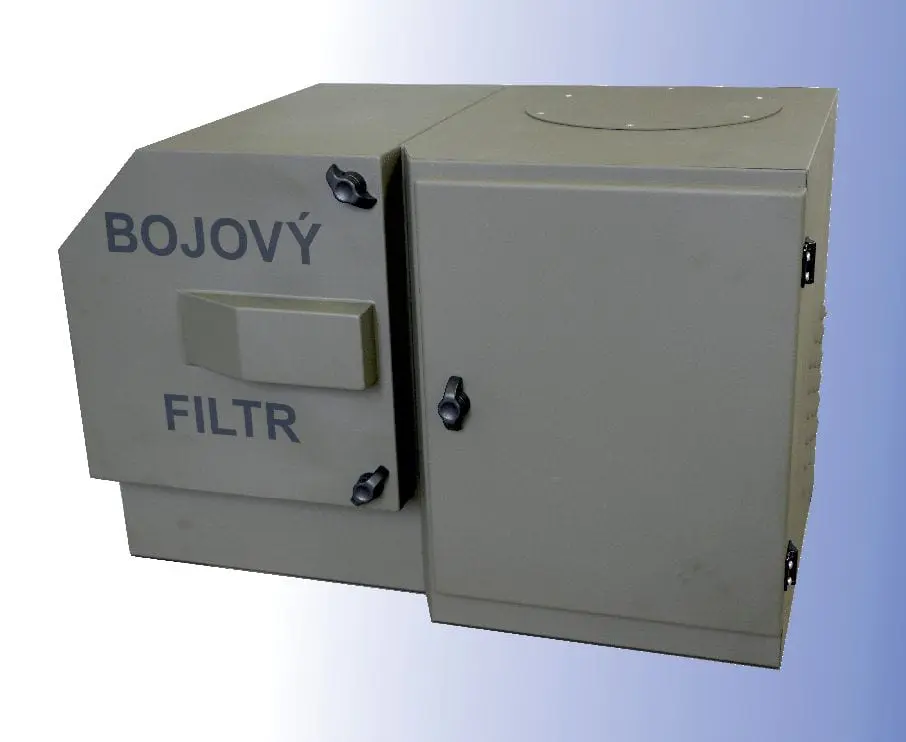

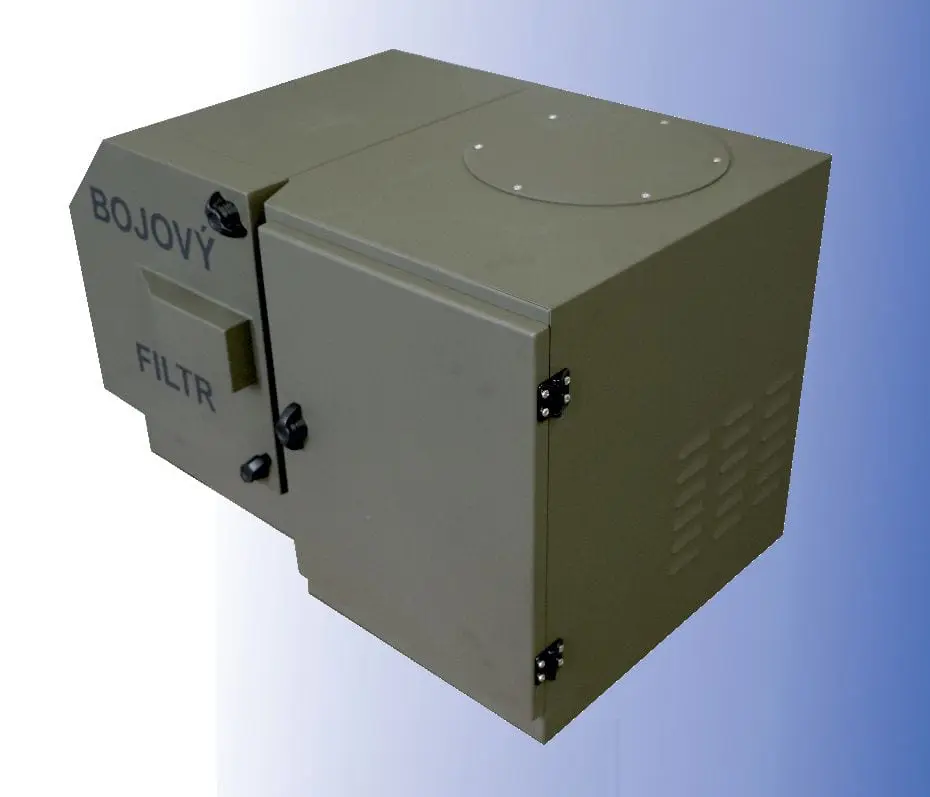

FILTRATION AND VENTILATION UNIT FVZ-98M(NG)
FVZ-98M(NG) ensures the protection of the required area and its supply with filtered air even under the conditions of use of WMD. The sophisticated control system of FVZ-98M(NG) is able to automatically maintain the required positive pressure in the protected area at a constant level and to respond to possible leakage of the protected area. The tree-stage filtration system ensures a dust separation of more than 99.95 % (filtration class H13 according to ČSN EN 1822-1).
Compared to the previous model FVZ-98M(KP), the following innovative elements have been implemented into FVZ-98M(NG):
- CO sensor;
- Air quality control based on CO concentration;
- Integration of interface for CAN communication;
- The equipment is primarily equipped with collective filter KFM-200 and is ready for installation with and equivalent foreign collective filter if required by the customer.
BASIC COMPONENTS OF FVZ-98M (NG):
- filtroventilation unit;
- filters;
- control box;
- sensor CO2.
BASIC TACTICAL AND TECHNICAL DATA:
| Dimensions | 530 × 780 × 540 mm |
| Weight without filters | 59 kg |
| Nominal air flow | 100 m3 · h-1 |
| Maximum air flow (KFM-200) | 200 m3 · h-1 |
| Positive air pressure (protected area) | 300 Pa |
| Rated voltage | 24 V DC |
| Ambient temperature (operating) | -32 °C to +50 °C |
