20 kVA LR POWER SUPPLY AND DISTRIBUTION SET

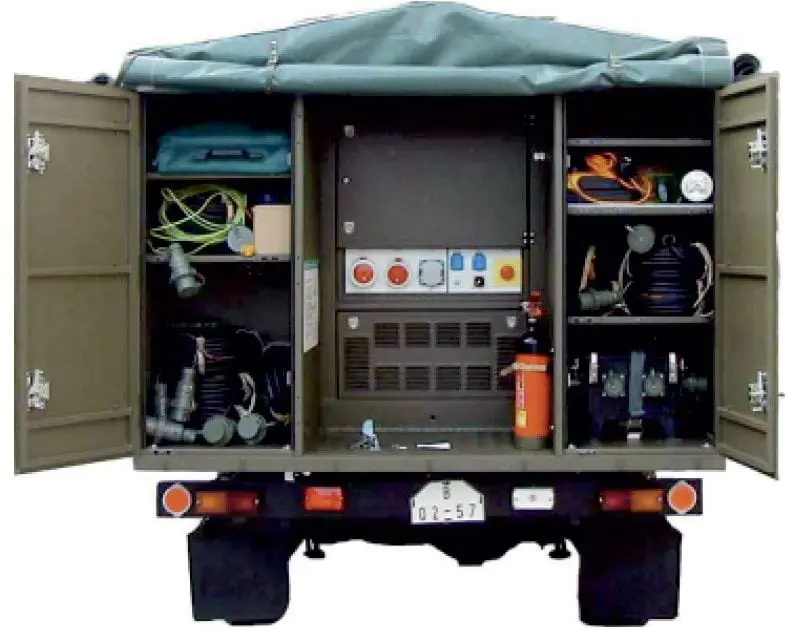

The 20 kVA power supply and distribution set on the LAND ROVER DEFENDER 130 chassis with the rated output power of 20 kVA (16 kW) represents a mobile, independent electrical energy source for general use, which enables the supply of the both three-phase and one-phase appliances in the 3 x 230/400 V, 50 Hz voltage system and together, it enables the accumulators charging or to supply the extra-low voltage appliances up to the 1000 W from the 28 V DC voltage system. It is intended for operation in the field conditions to ensure the electrical energy delivery immediately after the unit coming to the operational area.

The ZRS-20 kVA LR is not intended for the parallel operation with a similar device or with the low voltage distribution mains and it is not intended for the operation during the transport.

OPERATIONAL CONDITIONS:

The ZRS–20 kVA LR is intended for continuous operation in the field conditions in the areas with mild climate:

  • Ambient temperature form –30 °C až +44 °C;
  • Relative humidity up to 90 % at the temperature +30 °C;
  • Rain intensity up to 3 mm per minutes falling under the angle 30°;
  • Air dustiness up to 0,5 g/m3 for at least 1h;
  • Airflow up to 20 m/s.

The set is not intended for the operation during the mass destruction weapons using.

BASIC TACTICAL AND TECHNICAL DATA:

Vehicle type:LAND ROVER DEFENDER 130
MotorCompression ignition, supercharged, 5 cylinders
Stroke volume2 498 cm3
Maximal power90,0 kW at 4 200 min-1
Fuel consumption12,7 l/100 km
Dimensions (l × w × h)5 130 × 1 930 × 2 330 mm
Total weight3 500 kg
Generating set type:Č-EDM 16-T400/230-2V
Rated voltage, frequency3 × 230/400 V, 50 Hz
Motor ECCompression ignition, supercharged, 4 cylinders, air cooling
Fuel consumption at the rated power5 l.h-1
Fuel tank capacity40 l
Alternatorsynchronous, brushless
Total length of the distribution set cables225 m
