12.7 x 99 mm Ammunition

Ammunition characteristics:

The ammunition is designed for the 12.7 x 99 mm sniper rifle type FALCON, BARRETT, etc. and machine guns type M2HB, etc.

DESCRIPTION:

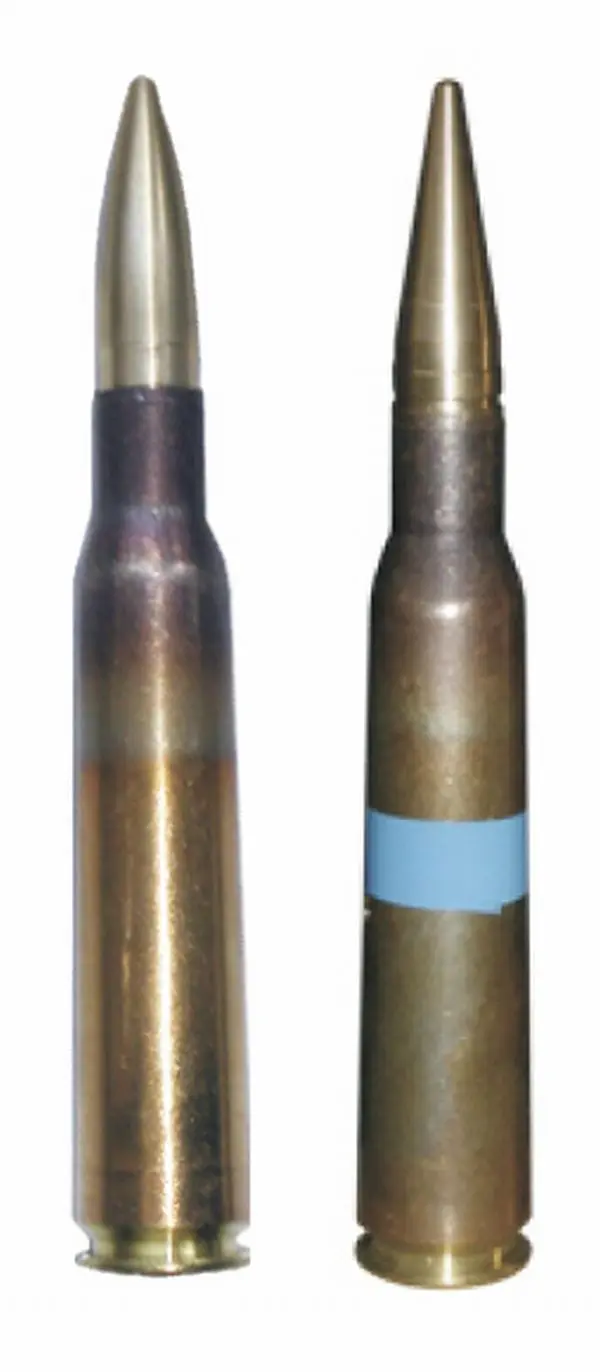

The ammunition consists of standard 12.7 x 99 mm cartridge case, ignition cap, propelling charge (smokeless powder D100-02) and 12.7 mm AP, AP(HC), BALL and Rd projectiles.

APAP(HC)BALLRd
Origin of projectileownownownown
Initial velocity (m.s-1)925 m.s-1925 m.s-1905 m.s-1 1050 m.s-1
Weight of projectile43 g42 g47 g26 g
Accuracy (MOA)up to 4.0 MOAup to 1.5 MOAup to 2.0 MOAup to 3.0 MOA
Armour penetration at distance of 1000 m22 mm25 mmxxxxxx

Projectile characteristics:

AP –armour piercing projectile with steel penetrator designed for troop’s combat operations
AP(HC) -armour piercing projectile with tungsten penetrator designed for troop’s combat operations
BALL –basic projectile (brass single-piece) intended for troop’s combat operations and training
Rd -short range projectile designed for training of troops

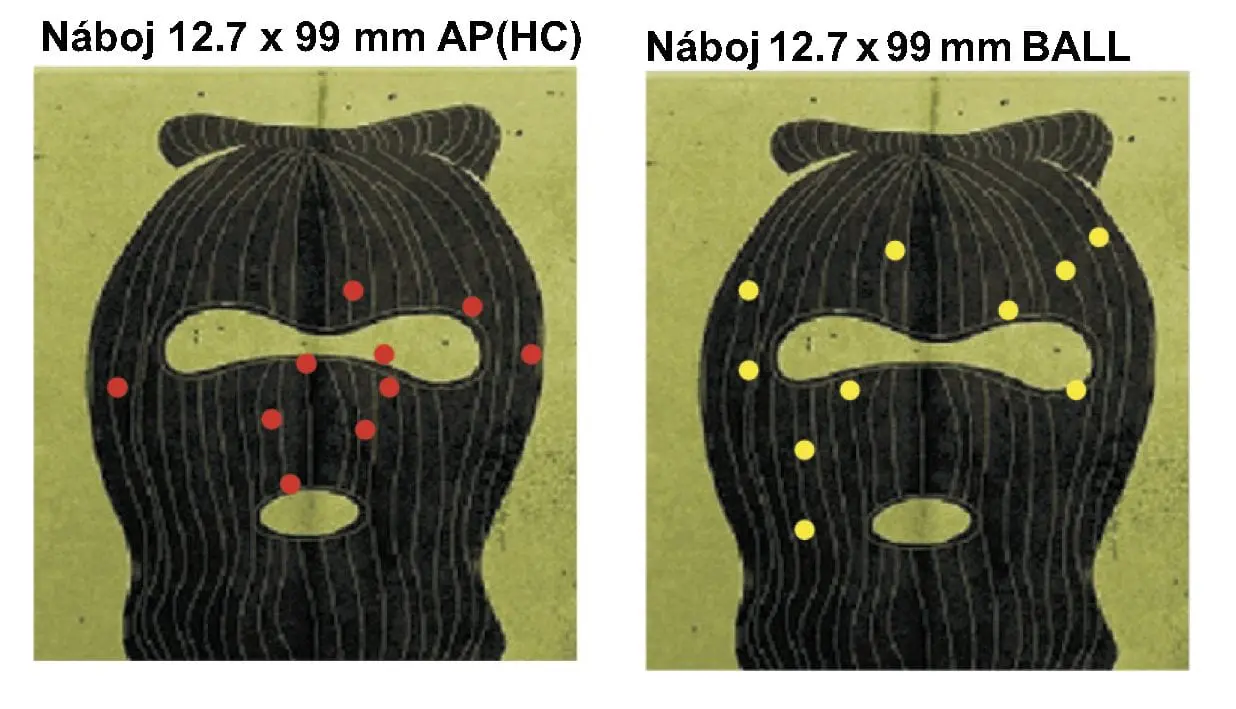

Examples of dispersion to the ranges X = 550 m:

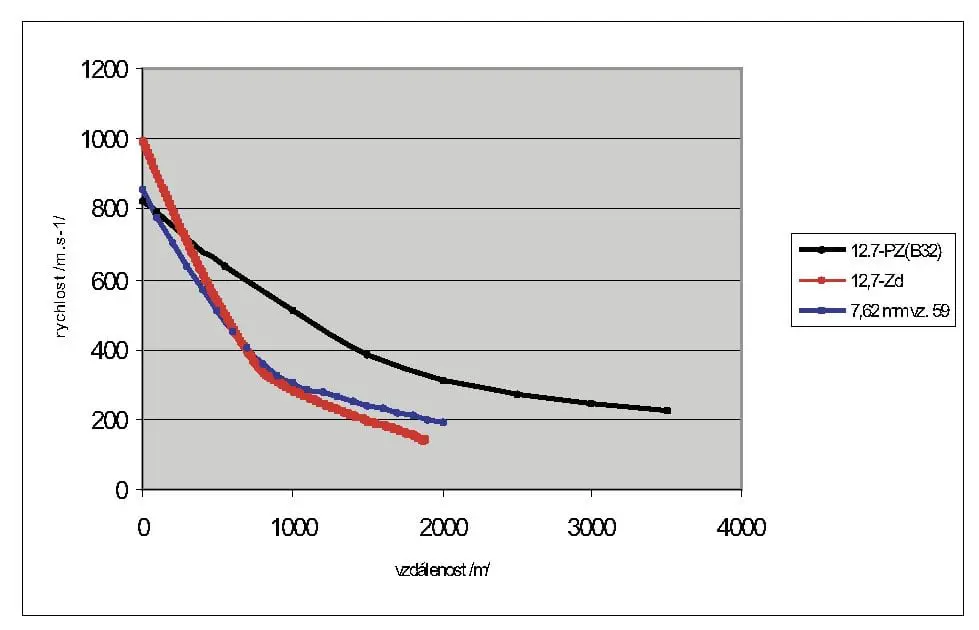

Comparing the 7.62 mm and 12.7 mm course of projectile velocities

12.7 x 107 mm Ammunition

Ammunition characteristics:

The ammunition is designed for the 12.7 x 107 mm sniper rifle type FALCON and machine guns DSKM and NSV.

DESCRIPTION:

The ammunition consists of standard 12.7 x 107 mm cartridge case, ignition cap, propelling charge (smokeless powder D100-02) and 12.7 mm AP, AP(HC), BALL and Rd projectiles or projectiles MP, MP-T and AP-S produced by Norwegian company Nammo-Raufoss.

APAP(HC)BALLRdMP/MP-TAP-S
Origin of projectileownownownownNAMMO (Norway)NAMMO (Norway)
Initial velocity (m.s-1)9259258851030925885
Weight of projectile43 g42 g47 g26 g43/44 g47 g
Accuracy (MOA)3.0 –
5.0
2.0 – 2.52.0 – 4.02.0 – 4.02.0 – 4.02.0 – 4.0
Armour penetration at distance of 1000 m2225 mmxxxxxx18 mm30 mm

Projectile characteristics:

AP – armour piercing projectile with steel penetrator designed for troop’s combat operations
AP (HC) – armour piercing projectile with tungsten penetrator designed for troop’s combat operations
BALL – basic projectile (brass single-piece) designed for troop’s combat operations and training
MP – multipurpose projectile with armour-piercing effect and enhanced fragmentation effect to the “light targets” designed for troop’s combat operations
MP-T– multipurpose projectile with tracer with armour-piercing effect and enhanced fragmentation effect to the so-called light targets designed for troop’s combat operations
AP-S – armour-piercing incendiary projectile designed for troop’s combat operations
Rd – short range projectile designed for training of troops

Examples of effects to various targets:

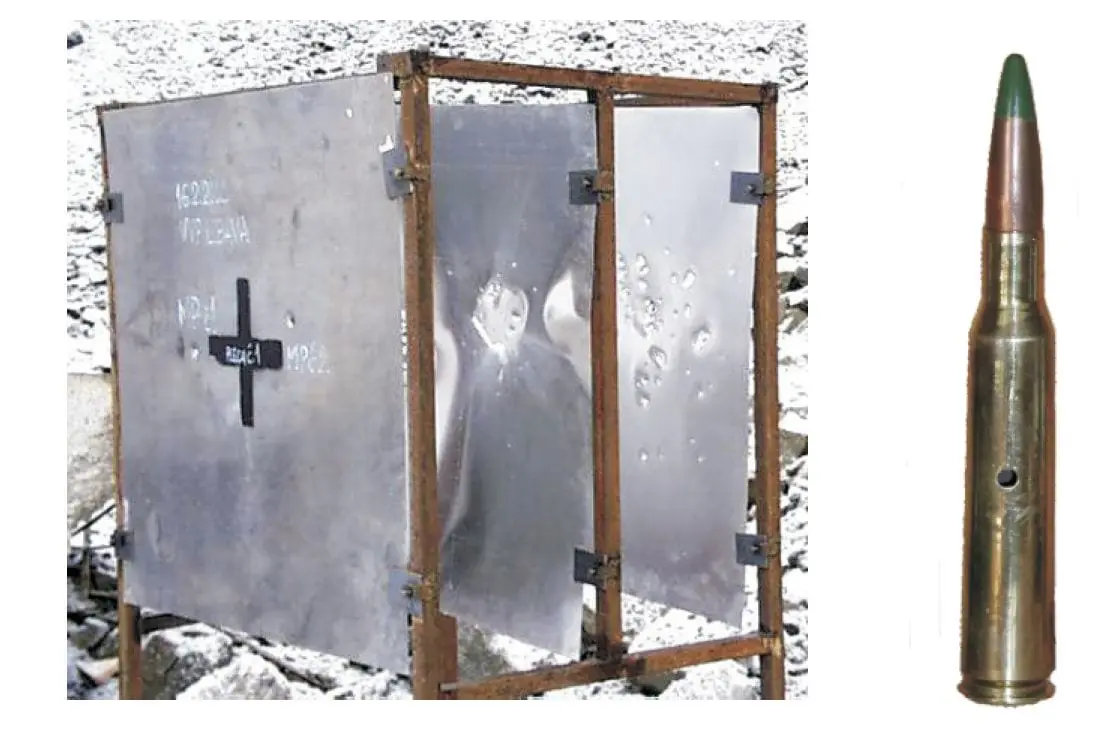

Effect of the MP projectile set of 3 thin steel plates (“light target”)

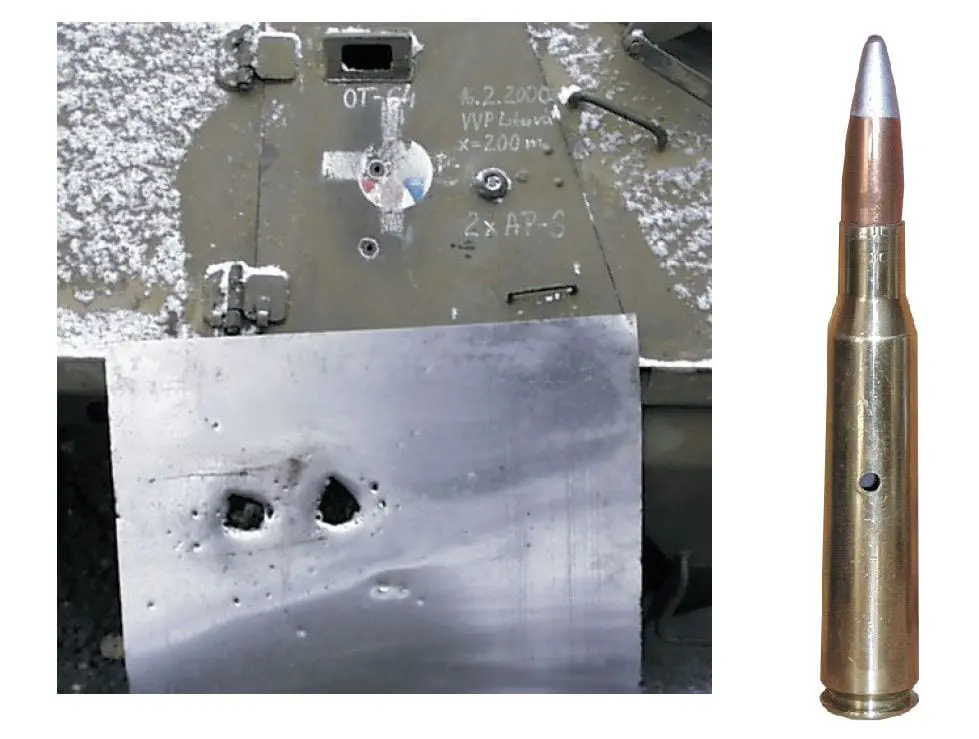

Effect of the AP-S projectile side armour (armoured vehicle OT-64)
