Ammunition for 60 mm mortars
Purpose

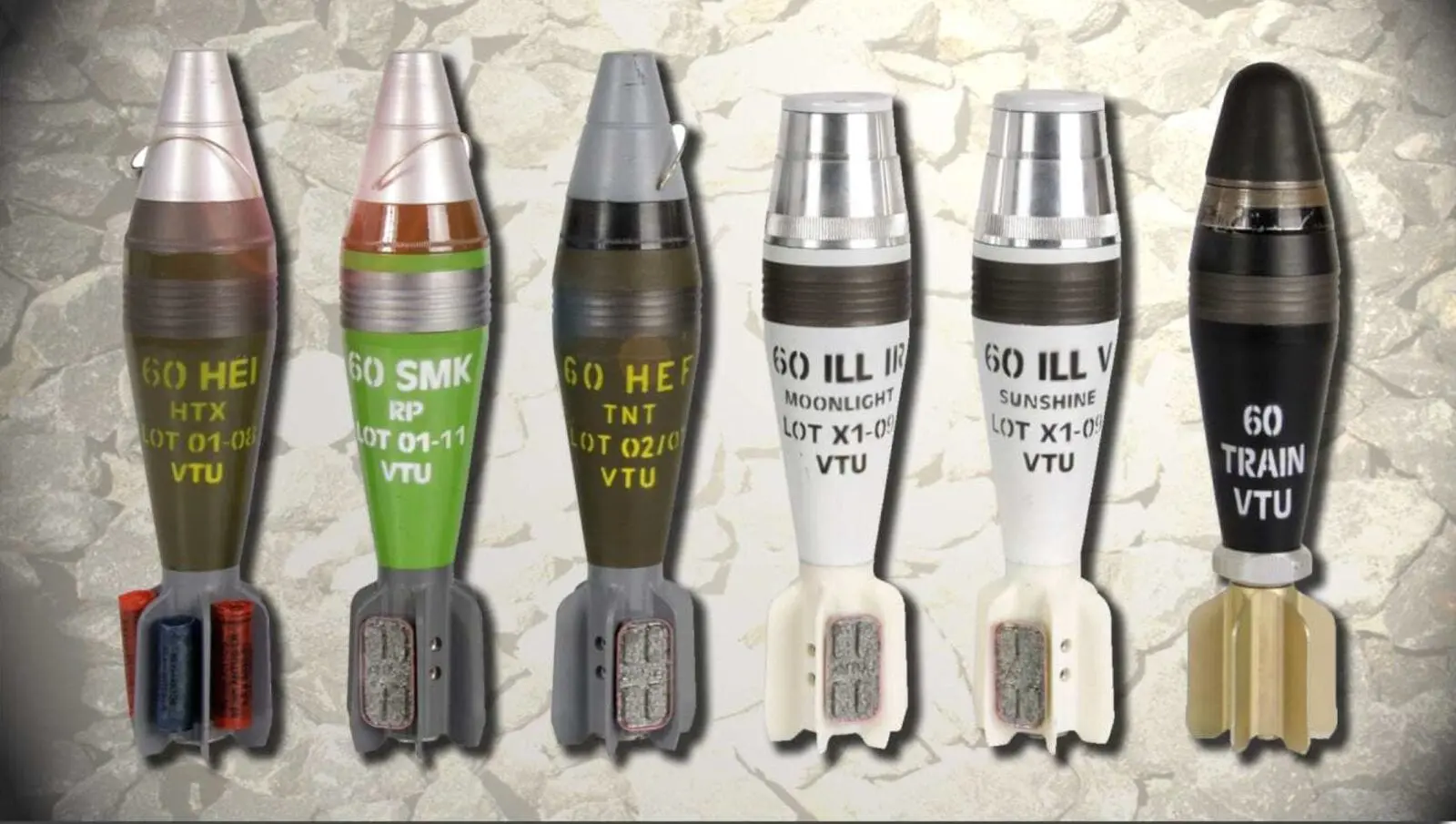

The 60 mm mortar bombs of NATO standard are intended for fire from the 60 mm Ultralight Commando Mortar ANTOS and from 60 mm mortar ANTOS-LR. The following mortar bombs are manufactured for 60 mm mortars:
- 60 mm HEF
- 60 mm HEI
- 60 mm SMK
- 60 mm ILL
- 60 mm ILL IR
- 60 mm TRAIN (JUMP)
Mortar bombs are delivered to the customer with filled both primary and additional charges and it is stored in water-proof plastic case. Mortar bombs are packed in a wooden case, each case contains 10 pieces of mortar bombs.
60mm HEF a HEI
Bomb body is filled with TNT explosive for the HEF bomb (standard high-explosive) or with HTX blasting explosive with thermo-baric effects for the HEI. All these bombs are equipped with the nose fuse PDSQ according to NATO standards.
| Characteristics | 60-HEF | 60-HEI |
| Mass of mortar bomb (g) | 1420±20 | 1420±20 |
| Explosive | TNT | HTX |
| Mass of explosive (g) | 214±2 | 268±2 |
| Detonation velocity (m.s-1) | 6850 | 7020 |
| Detonation pressure (GPa) | 19.2 | 21.1. |
| Effective fragments over 0,5 g | >350 | >350 |
| Lethal radius (2 effective fragments per m2) | 8.5 | 11.8 |
| Overpressure at 3 m distance (kPa) | 50 | 71 |
| TNT equivalence in pressure (%) | 100 | 141 – 174 |
| TNT equivalence in pulse (%) | 100 | 157 – 170 |
| Distance to reach equivalent pulse | 1.00 | 1.27 – 1.66 |
| UN Number | 0321 | 0321 |
| Classification Code | 1.2 E | 1.2 E |
| Weight of packing box with 10 pieces of bomb (kg) | 20±1 | 20±1 |
60mm ILL a ILL-IR
60 mm ILL flare emitted light in visible part of spectrum. Light emission of the ILL-IR bomb flare is suppressed in visible part of spectrum and its maximum light emission is in the area of 800 to 900nm.
| Mortar bomb mass | 1,15 kg ± 0,02 kg |
| Mortar bomb mass | 0,15 kg ± 0,02 kg |
| Mortar bomb length | 267 mm ± 3 mm |
| Flare luminous intensity (ILL) | min. 100.000 Cd |
| Flare luminous intensity (ILL-IR) | min. 52 W. sr-1 |
| Period of flare ejection from bomb ignition | 7,5 s ± 1,2 s |
| Illumination time | min. 20 s |
| Height of flare ejection | min. 200 m |
| UN Number | 0254 |
| Classification Code | 1.3G |
| Mass of container incl. 10 mortar bombs | 20 kg ± 1 kg |
60mm SMK
60 mm mortar bomb SMK (SMOKE) is determined for marking of location on terrain (enemy position, object of interest) in distance under mortar range via smoke cloud created by mortar bomb explosion. Construction is based on 60 mm HEF/HEI mortar bombs but instead explosive composition contents smoke made one based on red phosphorus.
| Mortar bomb mass | 1,42 kg ± 0,02 kg |
| Smoke made composition mass | 200 g ± 15 g |
| Mortar bomb length | 293 mm ± 3 mm |
| Time of smoke cloud duration (windless conditions) | min. 15 s |
| UN Number | 0015 |
| Classification Code | 1.2G |
| Mass of container incl. 10 mortar bombs | 20 kg ± 1 kg |
60mm TRAIN (JUMP)
60 mm training mortar bomb JUMP (TRAIN) is determined for initial training of mortar gunners especially for weapon and ammunition preparation before firing, loading, aiming and shooting practise. Mortar bomb JUMP is inert and has rubber fuse mock-up. 60 mm mortar bomb JUMP is reusable. Bomb is ejected from mortar barrel by means of 9 mm TEMPO 6 ANTOS cartridge inserted into ammunition chamber of stabilizer carrier after bomb fin stabilizer unscrewing. After shooting the bomb shall be cleaned, fin stabilizer shall be unscrewed and spent cartridge shall be removed by tongs or screwdriver. The shooting can be repeated after new cartridge inserting.
| Mortar bomb average mass | 1290 g ± 30 g |
| Mortar bomb length | 285 mm ± 3 mm |
| Range of fire from mortar ANTOS (65° elevation) | 12 m |
| Range of fire from mortar ANTOS-LR (65° elevation) | 5 m |
| Rejected cartridge (is not part of 60 mm JUMP) | 9 mm TEMPO 6 ANTOS |
| Mass of container incl. 10 mortar bombs | 20 kg ± 1 kg |
