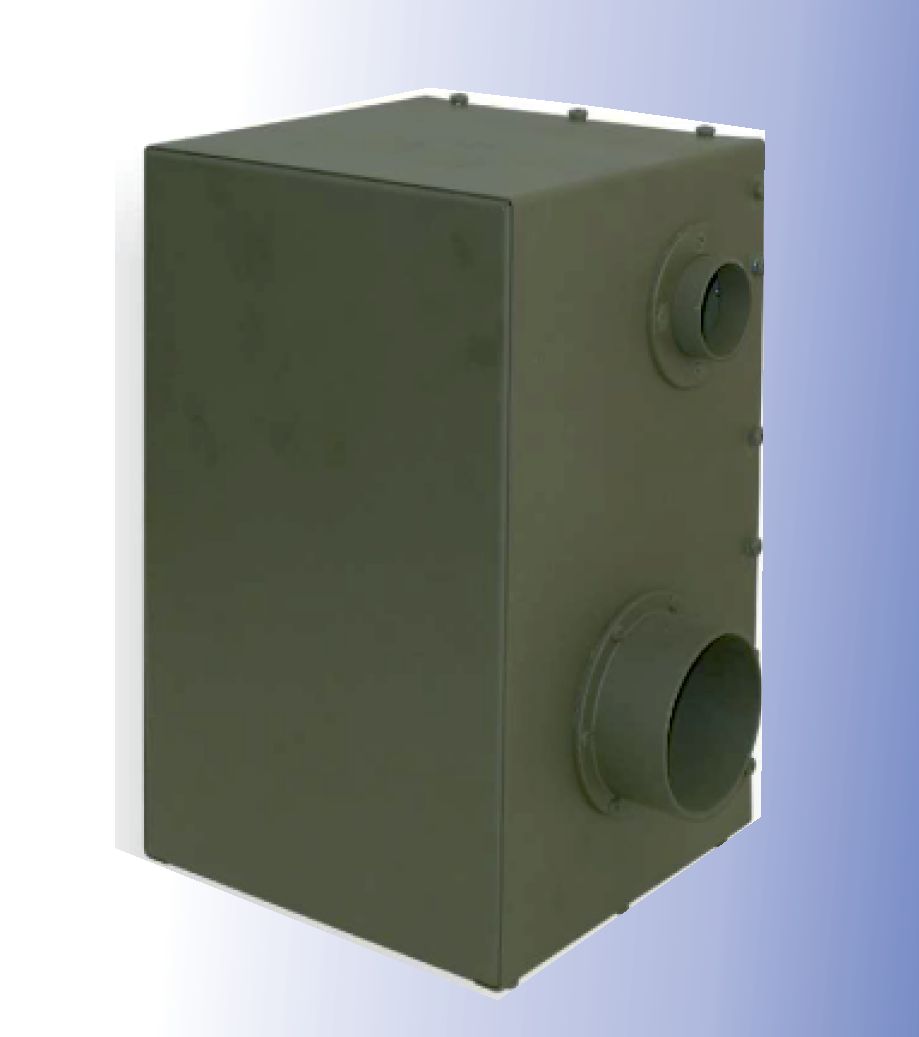

FILTRATION AND VENTILATION UNIT FVZ-50

The FVZ-50 unit is intended for supplying of protected space of smaller mobile means (small armoured vehicles, small van bodies, van cabs) with filtered air even under conditions of mass destruction weapons usage. It ensures the air clearance of dust (even radioactive) and of combat chemical agents in the form of gas and aerosols. It creates the overpressure in the COLPRO space that prevents from toxic substances penetration into the crew compartment. It is to be installed outside the object, on demand it is possible to adjust it for the indoor mounting.

It consists of two basic modules – cyclo-ventilation unit and combat filter. In vehicles equipped with own ventilation device the combat filter is to be set directly to cyclo-ventilation unit and forms all-filtration device (FZ-50). In other objects the connection between modules is to be made by hoses with quickcouplers, which enables the switching between filtration and ventilation modes (FVZ-50).

BASIC COMPONENTS OF FVZ-50:

  • cyclo-ventilation unit;
  • combat filter;
  • control box.

BASIC TACTICAL AND TECHNICAL DATA:

Basic dimensions
cyclo-ventilation unit220 × 225 × 370 mm
combat filter220 × 220 × 365 mm
Air supply50 ÷ 70 m3 · h-1
Air overpressure in the crew compartmentmin. 250 Pa
Nominal voltage/current24 V DC/ 3A
Climatic resistance-32 °C to +44 °C
